PlanOpSim unites the design of planar optics into an easy-to-use meta-lens software tool. PlanOpSim unites:
- Metacell: Optical design of nanostructures using a full solution of Maxwell's equations
- Meta-Component: Design of meta-surfaces, meta-lenses, components and holograms using powerful optimization methods
- Integrate your meta-surface components into optical systems with 3rd party ray-tracing and CAD software
Photonic Design Services
Support, Training & Use Cases
Photonic Design Services
Photonics can be complicated. Let PlanOpSim help you solve your design and integration problems.
PlanOpSim’s team has over 10 years of experience in optical modelling in multiple aspects of photonics:
- Meta-surfaces and planar optical components
- OLED and liquid crystal displays
- Thin film coatings
- LED lighting
- Solar cells
- Optical measurement systems
Support, Training & Use Cases
Support, Training & Use Cases
Support, Training & Use Cases
We understand designing with meta-lens are easy, that is why we offer support, training and use cases after your investment.
The PlanOpsim software provides a start-to-finish workflow for the design of meta-lenses and other meta-surfaces.
- Full wave solution of meta-atoms
- Meta-surface design for optical functionality

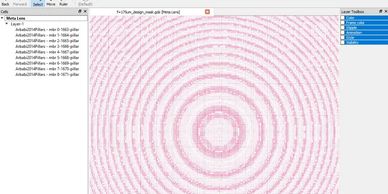

- Direct export to GDS
- Meta-surface performance analysis
To design meta-surfaces PlanOpSim simulates both the tiny nano-structures and larger components made of millions of nano-structures. PlanOpSim software applies a multi-scale optical model to simulate these components effectively. The sub-wavelength meta-atoms are modelled with a full wave solution to Maxwell equations and the component scale simulation is calculated using efficient propagation optics.
